Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM

Số lượng đặt hàng tối thiểu : 100 cái Giá bán : Negotiated
chi tiết đóng gói : hộp theo yêu cầu Thời gian giao hàng : 10 ngày
Điều khoản thanh toán : T/T, Western Union, L/C Khả năng cung cấp : 10000000pc/tháng
Nguồn gốc: Sản xuất tại Trung Quốc Hàng hiệu: JR
Chứng nhận: iso9001 Số mô hình: Vulcan Loại 194

Thông tin chi tiết

Vật liệu: Sic sic fkm cer car nbr Chức năng: cho máy bơm dầu, máy bơm nước
Mã HS: 848420090 Đặc điểm kỹ thuật: Con dấu cơ khí Burgmann Seal 155
Giấy chứng nhận: ISO9001 Kiểu: con dấu Burgmann MG1
Tiêu chuẩn hoặc không có: Tiêu chuẩn Kích cỡ: 12-40mm
Tên sản phẩm: Phốt cơ khí MG1 Vật mẫu: cho phép

Mô tả sản phẩm

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM



Operations Conditions:



  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 28 28.575 38.1 50.8 63.5 76.2mm
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

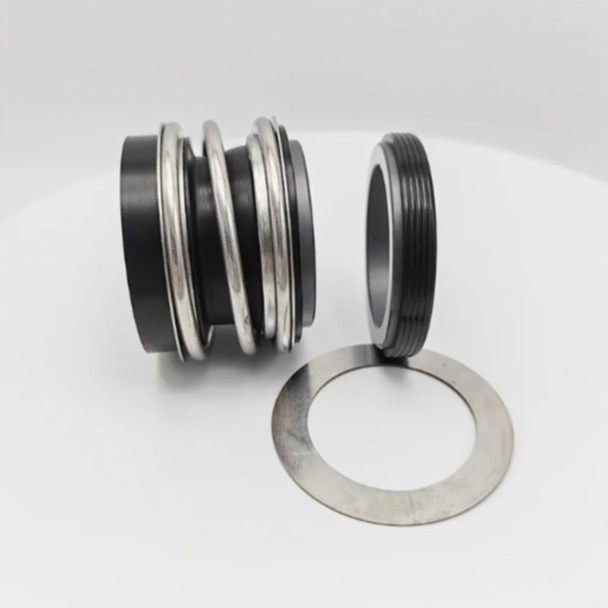

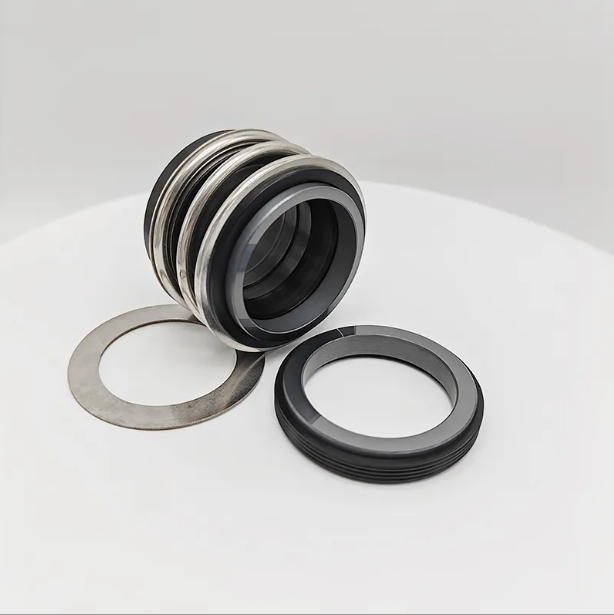

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 0

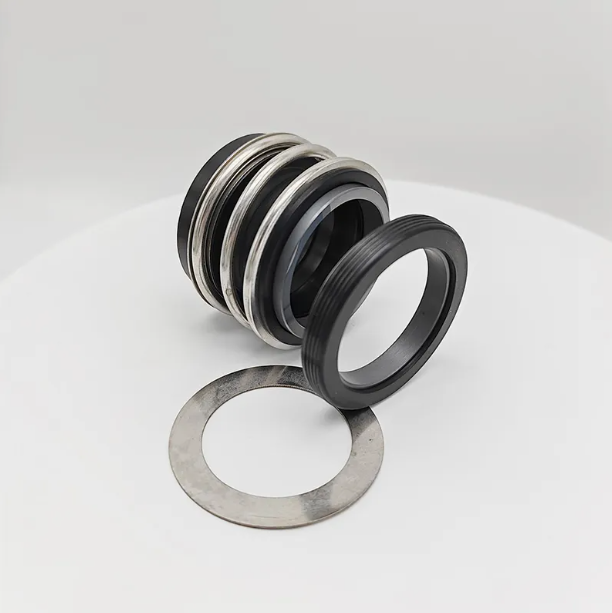

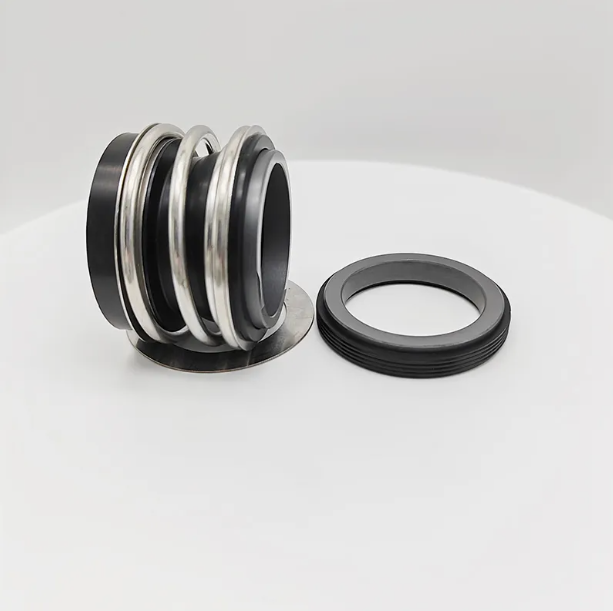

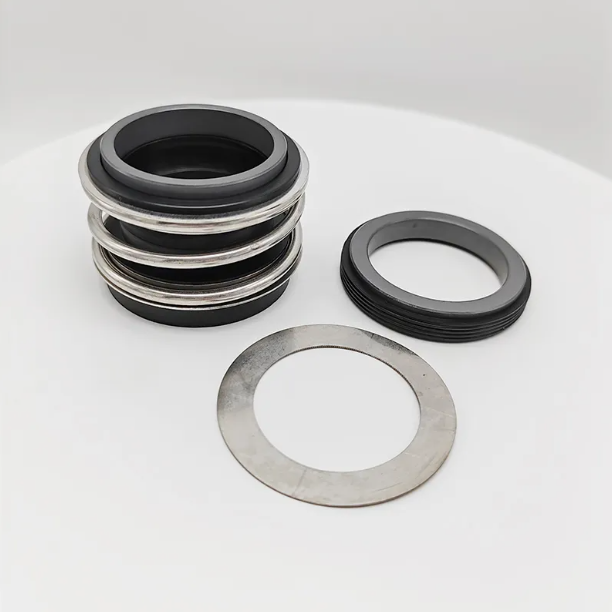

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 1Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 2Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
