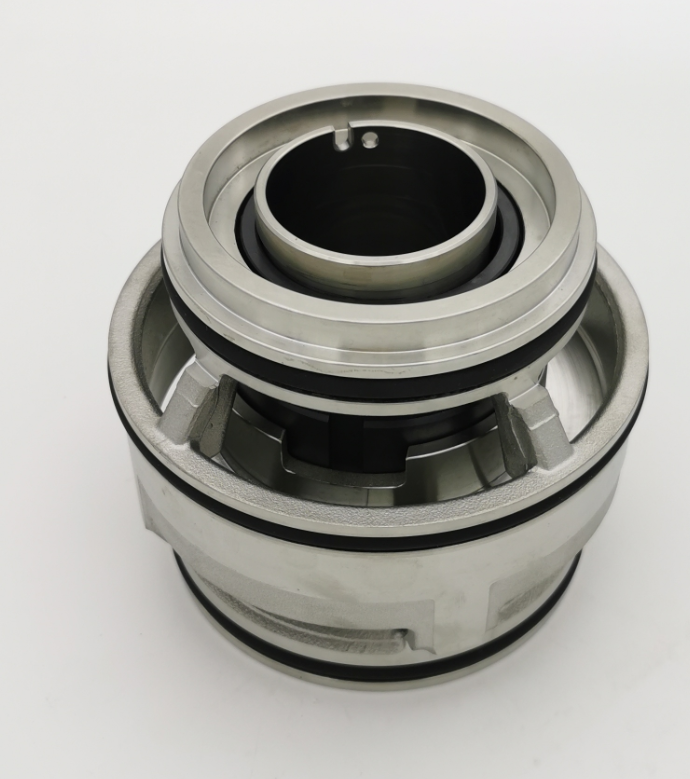

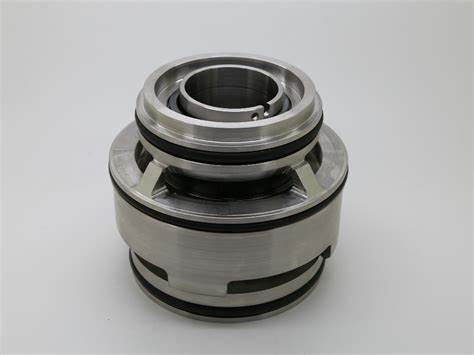

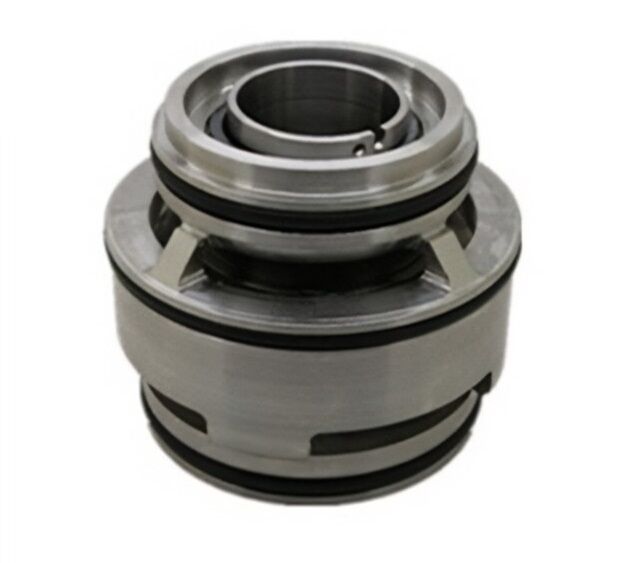

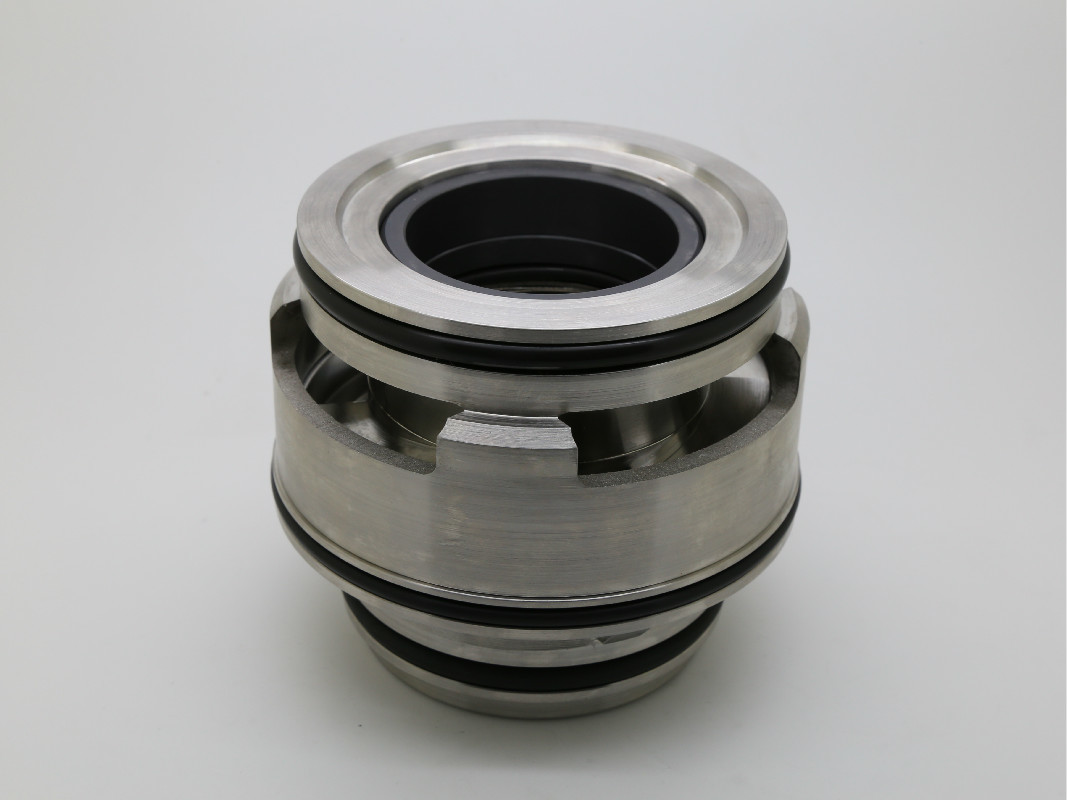

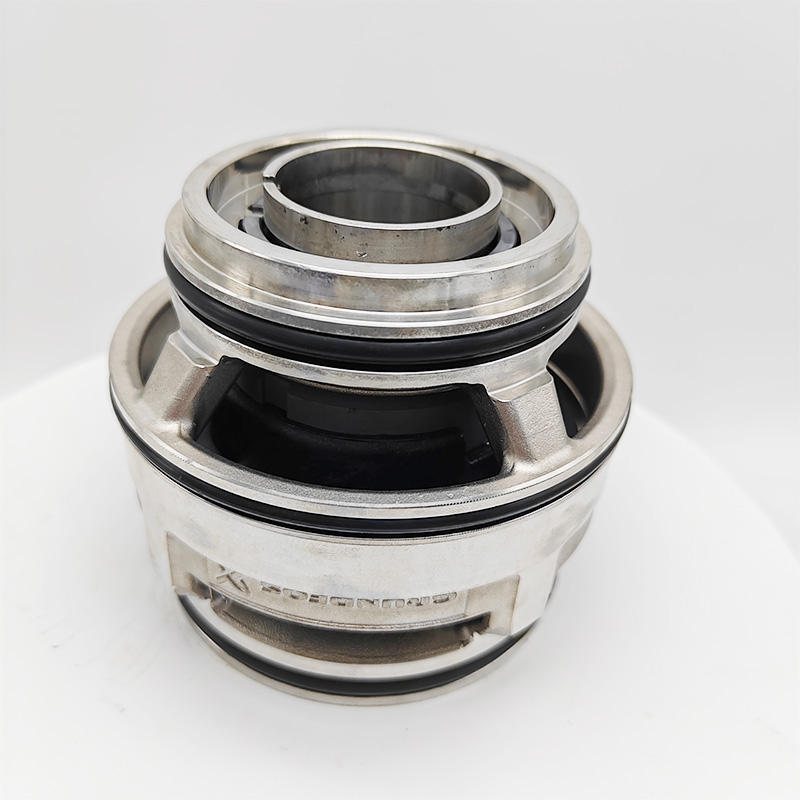

96952242 Cartridge Mechanical Seal for Grundf.os SL1/SE Pump Size 43mm

Số lượng đặt hàng tối thiểu : 100 cái Giá bán : Negotiated
chi tiết đóng gói : hộp theo yêu cầu Thời gian giao hàng : 10 ngày
Điều khoản thanh toán : T/T, Western Union, L/C Khả năng cung cấp : 10000000pc/tháng
Nguồn gốc: Sản xuất tại Trung Quốc Hàng hiệu: JR
Chứng nhận: ISO9001 Số mô hình: Grundfos Sarlin 43mm

Thông tin chi tiết

Vật liệu: Sic sic fkm cer car nbr Chức năng: cho máy bơm dầu, máy bơm nước
Mã HS: 848420090 Đặc điểm kỹ thuật: Phớt cơ khí Burgmann Seal EA560
Giấy chứng nhận: ISO9001 Kiểu: con dấu burgmann
Tiêu chuẩn hoặc không có: Tiêu chuẩn Phong cách: con dấu cơ khí
Kích cỡ: 22mm Tên sản phẩm: Phớt cơ khí máy bơm nước WB1S Phớt cơ khí lò xo đơn Thay thế Aesseal (thay thế MTU FP/T3S)

Mô tả sản phẩm

43mm Grundfos Cartridge Mechanical Seal Replacement Stationary For Sarlin Pump

Operations Conditions:

  1. Similar to mechanical seal  43MM
  2. Temperature:-20ºC to +120ºC
  3. Pressure:≤1.0MPa
  4. Speed:≤15m/s

Material:

  • SIC/SIC /FKM/Ø43,Spring: SS304


Performance Capabilities


R-706se is applicable to Grundfos sarling se, SL, sev, SLV and SL1 pumps. 40,SL2. 45,SE SL 9. Art. 98119099,Kit,Shaft Seal F52 4P,2P,97926217,98119100,97926216. Under complex industrial conditions, it is used to transport process wastewater and wastewater with high particle content, including untreated wastewater.

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
25MM,35MM,45MM,
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail  As Requirment


Grundfos cartridge mechanical seal SARLIN 43 is a professional seal for sarlin wastewater pump, sarlin pump is a famous pump brand from finland, now had been purchased by gurndfos pump.







96952242 Cartridge Mechanical Seal for Grundf.os SL1/SE Pump Size 43mm 196952242 Cartridge Mechanical Seal for Grundf.os SL1/SE Pump Size 43mm 296952242 Cartridge Mechanical Seal for Grundf.os SL1/SE Pump Size 43mm 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
