Nhà Sản phẩmBơm con dấu cơ khí22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM

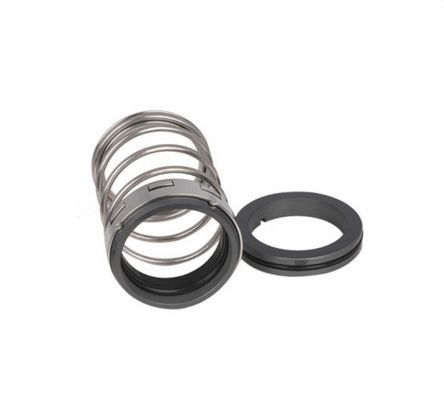

22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM
22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM
Liên hệ với bây giờ

22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM

Số lượng đặt hàng tối thiểu : 10pc Giá bán : Negotiated
chi tiết đóng gói : Hộp như yêu cầu Thời gian giao hàng : 20-30 ngày
Điều khoản thanh toán : T/T, Western Union, L/C Khả năng cung cấp : 10000 cái/tháng
Nguồn gốc: Được làm ở Trung Quốc Hàng hiệu: JR
Chứng nhận: ISO9001 Số mô hình: NHIỆM VỤ BƠM SEAL 2.5

Thông tin chi tiết
Vật liệu: Sic sic fkm Chức năng: Đối với bơm dầu, bơm nước
Gói vận chuyển: Hộp Mã HS: 848420090
Giấy chứng nhận: ISO9001 Kiểu: Nhiệm vụ con dấu cơ khí
Tiêu chuẩn hoặc không có: Tiêu chuẩn Kích cỡ: 2.5 inch
Đặc điểm kỹ thuật: Phớt cơ khí Mission Pump Tên sản phẩm: phớt cơ khí Mission Pump 2.5

Mô tả sản phẩm

Mission Horizontal Centrifugal Pump Mechanical Seal 2.5inch TC TC FKM​



Operational Conditions:

  1. Size: 2.5inch
  2. Temperature:-20 °C ...+220 °C
  3. Pressure: 16 bar
  4. Sliding velocity: 20 m/s
  5. Axial movement: ± 0.5 mm

Materials:

  1. Rotary Face: Carbon/SIC/TC
  2. Stat Ring: SIC/TC
  3. Seat Type: Standard AS-S16

Performance Capabilities

Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 21 bar
Speed
Up to 23 m/s
End play/axial float allowance
±0.1mm
Size
 2.5inch
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

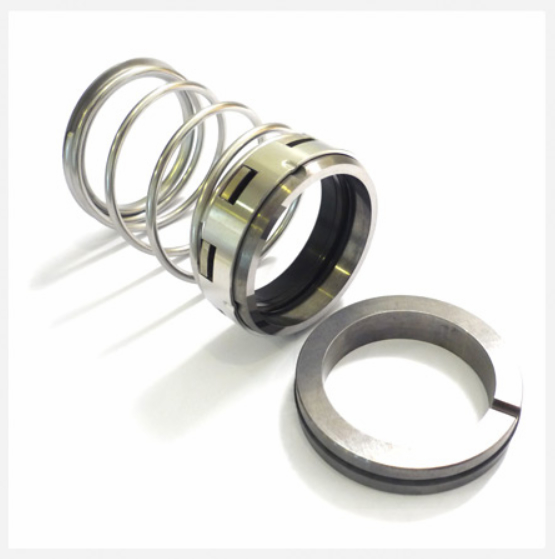

22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 0

22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 1

22451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 222451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 322451-1 Mechanical Seal For Mission Magnum Centrifugal Pump 2.5inch TC TC FKM 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
